StoFloor ESD KU 614

EP coating system, electrically conductive by volume

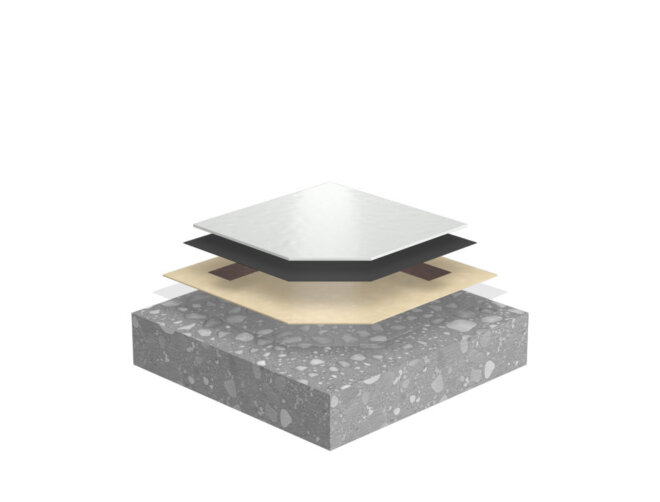

StoFloor ESD KU 614

1Primer

2Levelling filler

3Conductive layer

4Coating

5Quartz sand

Characteristics

Application

for ESD protection zones, for clean rooms, for server rooms, for rooms with highly sensitive electronic devices, for production areas and storage areas for electronic components, for production halls in the automotive industry

Fire behaviour

Flame retardant (EN 13501-1)

Colour spectrum

RAL colour fan K 5; NCS, others

Further information

the system benefits vary depending on the conductive layer used

Sustainability

Sto sustainability data sheet, low-emission according to AgBB test criteria

Cleaning/maintenance

Good cleanability according to StoCretec maintenance recommendations

System advantages

Personal charge according to EN 61340-4-5 < 50 V even at low humidity, fulfils personal protection according to DIN VDE 0100-410 even at a nominal voltage > 500 V in combination with StoPox WL 118, system resistance according to EN 61340-4-5 < 35 megohms even at low humidity

Substrate

Concrete, cement screed, calcium sulphate screed, others (on request)

Further properties

Paint compatibility test for use in the automotive industry

Approvals/standards

Product complies with EN 1504-2, Product complies with EN 13813
